RM

Highlights:

  • Highly dynamic 5/6-axis machining
  • Highly dynamic fork milling head with torque motors
  • Portal machining centre with a gantry structure
  • CNC control HEIDENHAIN TNC 640
  • Tool magazine with 48 places as standard
Core components

Core components

Our machines are characterized by the optimal synergy between the three core components of the machine tool. Thanks to a close technological partnership to develop core components such as milling heads, spindles, and rotary tables, we can now offer our customers manufacturing solutions that are specially tailored to their requirements, even beyond the usual standards.

Fork milling heads

  • Direct drive with torque motors
  • Swivel range A-axis: ± 110°
  • Swivel range C-axis: ± 360°
  • Very high acceleration values
  • Excellent positioning accuracy

Milling spindle

  • Wide selection of spindle options
  • High-speed HSK-A63 with up to 24,000 rpm
  • High-torque HSK-A100 with up to 300 Nm torque (S6)
  • Innovative cooling design

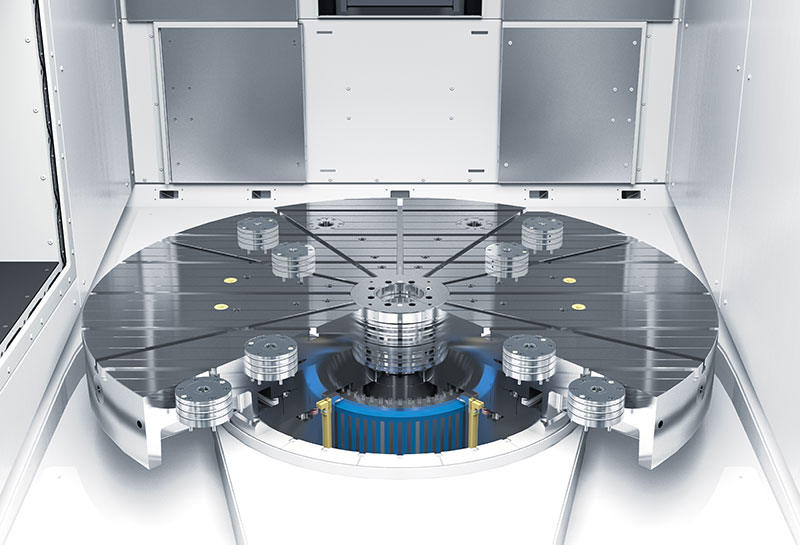

Rotary tables

  • Highly dynamic direct drive with torque motors
  • Very high acceleration and ideal positioning
  • Choice of various diameters
  • Integrated zero-point clamping system

Technical specifications

Working area
Travels axis X mm 2,200
Travels axis Y mm 1,300|1,600
Travels axis Z mm 1,200
Rapid traverse X / Y / Z m/min 50 / 50 / 50
Acceleration X / Y / Z m/s² 4
Feed force N 10,000
Portal passage
Width Y: mm 2,030 to 3,470
Height Z: mm 1,450 / optional: 1,650
Control system
HEIDENHAIN TNC 640 (optional SIEMENS 840D)
2-axis fork type milling head A-/C-axis
Swivel range ° ± 110 / ± 360
Swivel speed °/s 360 / 360
Torque nominal / max. Nm 710/1,340 / 780/1,530
Clamping moment Nm 4,000 / 4,000
Positioning accuracy " ± 2 / ± 2
Main spindle
Power S1 / S6 kW 27 / 32
Torque, max. S1 / S6 Nm 130 / 170
Max, Speed U/min 12,000
Tool taper   HSK-A63
Rotary table
Clamping surface mm Ø 1,800 ( optional Ø 1,200, Ø 1,500)
Max, table load centric N 60,000
Max, Speed min-1 100
Torque nominal / max.: Nm 7,450 / 13,900
Clamping moment Nm 25,000
Positioning accuracy " ± 2,5
Tool magazine
Places   48/64 HSK-A63 - 39/52 HSK-A100
Tool weight, max. kg 8 HSK-A63 - 15 HSK-A100
Tool length, max. mm 300
Tool taper / diamater mm Ø 105/130 / HSK-A63 - Ø125/175 / HSK-A100
Installation data
Space requirements X / Y / Z mm 6,780 / 6,550 / 5,150
Weight kg 36,000
Power requirements kVA 125
Connection V 3 x 400 / 50 Hz
Air supply bar 6
